تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: ZT
إصدار الشهادات: CE, ISO, RoHS
رقم الموديل: ZT-HXJ441-R
شروط الدفع والشحن
الحد الأدنى لكمية: 1 مجموعة
الأسعار: USD 3100-3500/SET
تفاصيل التغليف: صندوق خشبي
وقت التسليم: 15-30 يوم
شروط الدفع: ر/ر
القدرة على العرض: 100 مجموعة/شهر
الجهد االكهربى: |
تيار متردد 110 ~ 240 فولت |
أبعاد: |
350 ملم × 250 ملم × 150 ملم |
قطر سلك اللحام: |
0.5-1.2mm |
يكتب: |
تلقائي تماما |
سرعة اللحام: |
1-2 ثانية لكل نقطة لحام |
سعة المغذية: |
1000 جم |
طريقة اللحام: |
لحام الهواء الساخن |
المكونات الأساسية: |
PLC ، المحرك |
نوع التغذية: |
اهتزاز |
أصل: |
شنتشن ، قوانغدونغ ، الصين |
دقة التكرار: |
± 0.02mm |
لحام روبرت: |
ريبرت لحام لبي سي بي |
الجهد االكهربى: |
تيار متردد 110 ~ 240 فولت |
أبعاد: |
350 ملم × 250 ملم × 150 ملم |
قطر سلك اللحام: |
0.5-1.2mm |
يكتب: |
تلقائي تماما |
سرعة اللحام: |
1-2 ثانية لكل نقطة لحام |
سعة المغذية: |
1000 جم |
طريقة اللحام: |
لحام الهواء الساخن |
المكونات الأساسية: |
PLC ، المحرك |
نوع التغذية: |
اهتزاز |
أصل: |
شنتشن ، قوانغدونغ ، الصين |
دقة التكرار: |
± 0.02mm |
لحام روبرت: |
ريبرت لحام لبي سي بي |
| Voltage | AC 110~240V |
| Dimensions | 350mm x 250mm x 150mm |
| Soldering Wire Diameter | 0.5-1.2mm |
| Type | Fully Automatic |
| Soldering Speed | 1-2 seconds per soldering point |
| Feeder Capacity | 1000g |
| Soldering Method | Hot Air Soldering |
| Core Components | PLC, Motor |
| Feeder Type | Vibration |
| Origin | Shenzhen, Guangdong, China |
| Repeatability Accuracy | ±0.02mm |
| Solder Robert | soldering robert for PCB |
An automatic soldering machine is a robotic device designed to efficiently join electronic components to printed circuit boards (PCBs) using solder. These machines enhance manufacturing precision and speed, significantly reducing the risk of human error. They are equipped with advanced technologies, such as vision systems for component alignment and temperature control for optimal soldering.
Automatic soldering machines can perform various techniques, including wave soldering, reflow soldering, and selective soldering, catering to different production needs. Their use is prevalent in industries like electronics, automotive, and telecommunications, where high-volume production and consistent quality are crucial.

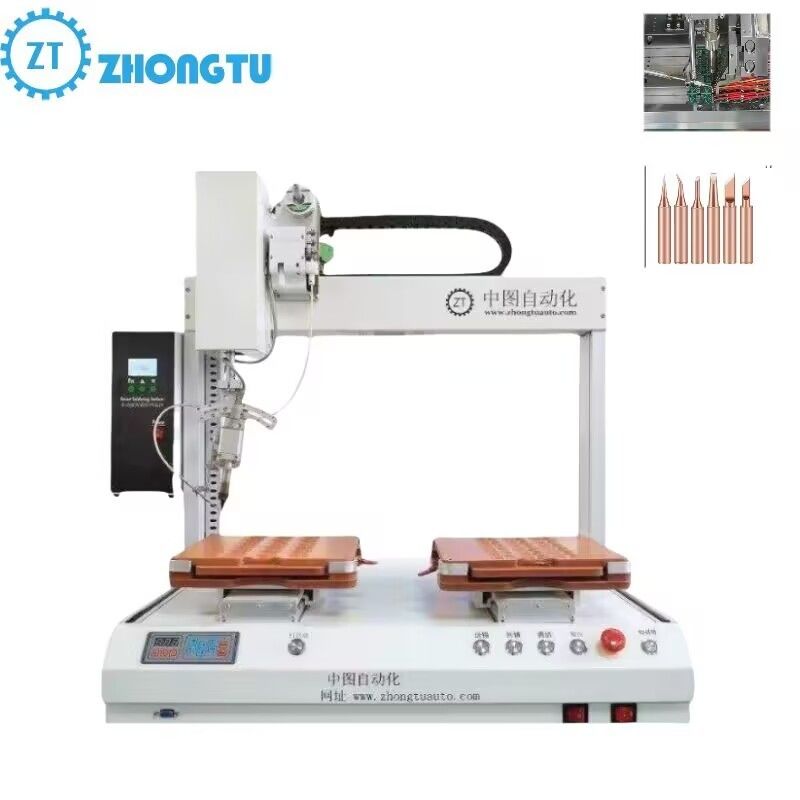

| Name: | Automatic Soldering Robot |
| Place of Origin: | ShenZhen, China |
| Applicable Industries: | Manufacturing Plant, SMT, DIP |
| Key Selling Points: | Automatic |
| Video outgoing-inspection: | Provided |
| Weight (KG): | 65Kg |
| Marketing Type: | New Product 2024 |
| Voltage: | 220/110V 50~60Hz |
| Warranty period: | 1 Year |
| Dimensions: | 850*750*850mm |
| Warranty of core components: | 3 Years |
| Solder Wire: | 0.6~1.5mm solder wire |
| Core Components: | PLC |
| Temperature Accuracy | ±3° |
| Power: | 680W |
| Solder Feeding Speed | 1~50mm/s |
| Current: | 5A |
| Repeate Accuracy | ±0.02mm |
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Fixture Customization |
|---|---|---|---|---|---|
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Need |
| Heating Temperature Range | 0-550ºC | ||||
| Machine Axis Number | 4axis | 4axis | 4axis | 5axis | Max moving speed |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Temperature Errors | ±2° | ||||
| Tin Wire Diameter | φ0.6mm-1.5mm | ||||
| Teaching File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||||
| Air Pressure | 4-5kg/cm² | ||||
| Weight(Kg) | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
| Pre-Sale | In Sale | After Sale |
|
|
|
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
We provide 1 Year Warranty for unit machine and 3 years warranty for main board. More details pls contact me.
Yes! You are welcome to place sample order to test our superior quality and service.
We are professional manufacturer for automation machine since 2015.
